Home >> Antibodies >> CD31 Antibody C31.10 / PECAM-1 Monoclonal Antibody

CD31 Antibody C31.10 / PECAM-1 Monoclonal Antibody [clone C31.10] (V2782)

  Catalog No Formulation Size Price (USD)
Image V2782-100UG 0.2 mg/ml in 1X PBS with 0.1 mg/ml BSA (US sourced) and 0.05% sodium azide 100 ug 559
V2782-20UG 0.2 mg/ml in 1X PBS with 0.1 mg/ml BSA (US sourced) and 0.05% sodium azide 20 ug 259
V2782SAF-100UG 1 mg/ml in 1X PBS; BSA free, sodium azide free 100 ug 559
V2782IHC-7ML Prediluted in 1X PBS with 0.1 mg/ml BSA (US sourced) and 0.05% sodium azide; *For IHC use only* 7 ml 559
Bulk quote request

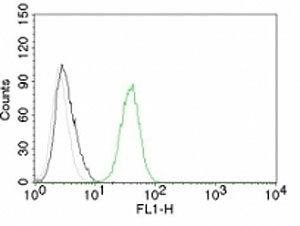

CD31 Antibody C31.10 detection of Jurkat cells by FACS. Flow cytometry analysis of human Jurkat cells using AF488-labeled CD31 Antibody C31.10. Cells alone are shown in black, the isotype control in gray and antibody-labeled cells in green. The green population displays a clear rightward fluorescence shift relative to the controls, demonstrating detection of cell-surface CD31. The distinct separation supports recognition of PECAM1 by clone C31.10, a PECAM-1 Monoclonal Antibody.
CD31 Antibody C31.10 staining of human angiosarcoma by IHC. Immunohistochemistry of FFPE human angiosarcoma sections using CD31 Antibody C31.10. Strong brown staining outlines numerous irregular vascular and endothelial structures throughout the tissue, with prominent membrane-associated labeling visible around vascular spaces. The pattern is consistent with the endothelial differentiation associated with angiosarcoma and the characteristic localization of PECAM1. This result demonstrates vascular staining with the PECAM-1 Monoclonal Antibody.
CD31 Antibody C31.10 staining of human tonsil vasculature by IHC. Immunohistochemistry of FFPE human tonsil sections using CD31 Antibody C31.10. Brown staining prominently highlights elongated vascular and endothelial structures within and adjacent to the lymphoid tissue, contrasting with the predominantly blue nuclear counterstaining of surrounding cells. The vessel-associated distribution is consistent with CD31/PECAM1 localization and demonstrates endothelial recognition by this PECAM-1 Monoclonal Antibody.
CD31 Antibody C31.10 purity assessment by SDS-PAGE. SDS-PAGE analysis of purified, BSA-free CD31 Antibody C31.10 with 2 ug loaded under non-reducing and reducing conditions. The non-reduced antibody migrates predominantly near approximately 125-150 kDa, consistent with intact immunoglobulin. Following reduction, prominent bands are visible near approximately 50 kDa and 25 kDa, corresponding to antibody heavy and light chains. The gel provides an assessment of the integrity and purity of clone C31.10, a PECAM-1 Monoclonal Antibody.
CD31 Antibody C31.10 detection of PECAM1 in Jurkat cells by WB. Western blot testing of human Jurkat cell lysate with CD31 Antibody C31.10. A strong predominant immunoreactive band is detected at approximately 110-120 kDa, within the expected 83-130 kDa range for CD31/PECAM1 depending on glycosylation. The mature cell-surface protein is extensively glycosylated, accounting for its higher apparent molecular weight relative to the underlying polypeptide. The discrete band demonstrates recognition of PECAM1 by clone C31.10, a PECAM-1 Monoclonal Antibody.
Availability 1-3 business days
Species Reactivity Human
Format Purified
Host Mouse
Clonality Monoclonal (mouse origin)
Isotype Mouse IgG1, kappa
Clone Name C31.10
Purity Protein G affinity chromatography
UniProt P16284
Localization Cell surface and cytoplasm of endothelial cells
Applications Flow Cytometry : 1-2ug/10^6 cells
Western Blot : 1-2ug/ml
Immunohistochemistry (FFPE) : 1-2ug/ml for 30 min at RT
Limitations This CD31 Antibody C31.10 is available for research use only.
Review this product on BioCompare and get a $20 Amazon gift card

Related Products

Description

CD31 Antibody C31.10 / PECAM-1 Monoclonal Antibody recognizes platelet endothelial cell adhesion molecule 1, a transmembrane glycoprotein encoded by the PECAM1 gene. CD31, also called PECAM-1, belongs to the immunoglobulin superfamily of cell adhesion molecules and contains six extracellular immunoglobulin-like domains, a single transmembrane region and a cytoplasmic signaling domain. The protein is prominently expressed by vascular endothelial cells and is also found on platelets, monocytes, neutrophils and subsets of lymphocytes. Its characteristic distribution has established CD31 as an important marker for investigating vascular endothelium, angiogenesis and hematopoietic cell biology.

PECAM-1 participates in homophilic interactions between adjacent endothelial cells and contributes to the organization and stability of endothelial junctions. Its cytoplasmic region contains immunoreceptor tyrosine-based inhibitory motifs that undergo phosphorylation and interact with intracellular signaling proteins. Through these adhesive and signaling functions, PECAM1 participates in vascular barrier regulation, mechanotransduction and endothelial responses to inflammatory and mechanical stimuli. A CD31 Antibody C31.10 provides a clone-specific reagent for research into these functions of platelet endothelial cell adhesion molecule 1.

CD31 also contributes to leukocyte transendothelial migration by participating in interactions that facilitate movement of immune cells through endothelial junctions. PECAM1 has additional roles in endothelial migration, angiogenesis and vascular remodeling. These functions make the protein relevant to research involving inflammation, cardiovascular biology, tissue repair, vascular development and tumor angiogenesis. A PECAM-1 Monoclonal Antibody can therefore support investigation of both endothelial organization and the molecular interactions connecting vascular and immune cell biology.

Clone C31.10 has also been included as a component of a CD31 monoclonal antibody cocktail used in published research, providing additional literature history for this clone. This use as part of a multi-clone reagent should be distinguished from studies evaluating C31.10 independently. NSJ Bioreagents provides clone C31.10 for researchers investigating PECAM1 expression and endothelial biology. A CD31 Antibody C31.10 provides a clone-specific tool for studying CD31 and its roles in vascular organization, cell adhesion and immune cell trafficking.

For a Protein Microarray Validated monoclonal antibody with CD31 as the primary designation, see our CD31 Antibody PECAM1/3527 / PECAM-1 Monoclonal Antibody.

Application Notes

Optimal dilution of the CD31 Antibody C31.10 should be determined by the researcher.

1. Staining of formalin-fixed tissues requires boiling tissue sections in 10mM Tris buffer with 1mM EDTA, pH 9.0, for 10-20 min followed by cooling at RT for 20 min
2. The prediluted format is supplied in a dropper bottle and is optimized for use in IHC. After epitope retrieval step (if required), drip mAb solution onto the tissue section and incubate at RT for 30 min.

Immunogen

Recombinant human protein was used as the immunogen for the CD31 Antibody C31.10.

Storage

Store the CD31 Antibody C31.10 at 2-8oC (with azide) or aliquot and store at -20oC or colder (without azide).

Alternate Names

PECAM-1 antibody, PECAM1 antibody, Platelet Endothelial Cell Adhesion Molecule 1 antibody, PECA1 antibody, EndoCAM antibody, GPIIA antibody
