CD20 Antibody rIGEL/773 / MS4A1 Monoclonal Antibody [clone rIGEL/773] (V3727)

  Catalog No Formulation Size Price (USD)
Image V3727-100UG 0.2 mg/ml in 1X PBS with 0.1 mg/ml BSA (US sourced) and 0.05% sodium azide 100 ug 559
V3727-20UG 0.2 mg/ml in 1X PBS with 0.1 mg/ml BSA (US sourced) and 0.05% sodium azide 20 ug 259
V3727SAF-100UG 1 mg/ml in 1X PBS; BSA free, sodium azide free 100 ug 559
V3727IHC-7ML Prediluted in 1X PBS with 0.1 mg/ml BSA (US sourced) and 0.05% sodium azide; *For IHC use only* 7 ml 559
Microvalidated Recmousemono
Bulk quote request
CD20 Antibody rIGEL/773 IHC Staining of Human Tonsil Tissue. Immunohistochemical analysis of FFPE human tonsil tissue using MS4A1 Monoclonal Antibody clone rIGEL/773. Brown DAB staining highlights lymphoid cell membranes within the tonsillar tissue. Heat-induced epitope retrieval was performed by steaming sections in citrate buffer (pH 6) for 20 minutes.

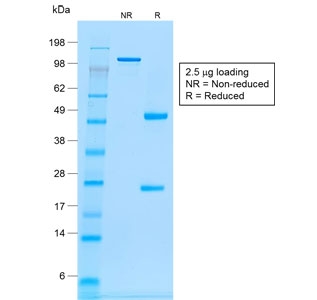

CD20 Antibody rIGEL/773 SDS-PAGE Analysis of Purified Antibody. SDS-PAGE analysis of purified, BSA-free MS4A1 Monoclonal Antibody clone rIGEL/773 under non-reducing (NR) and reducing (R) conditions. The gel shows an intact antibody band under non-reducing conditions and separated heavy and light chains under reducing conditions.
CD20 Antibody rIGEL/773 IF Staining of Human Raji Cells. Immunofluorescence analysis of human Raji cells using MS4A1 Monoclonal Antibody clone rIGEL/773. CD20 staining is shown in green, with prominent labeling along the cell periphery. RedDot nuclear staining is shown in red.

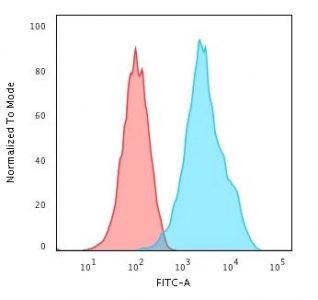

CD20 Antibody rIGEL/773 Flow Cytometry Analysis of Human Raji Cells. Flow cytometry analysis of human Raji cells using MS4A1 Monoclonal Antibody clone rIGEL/773. The blue histogram represents antibody staining, while the red histogram represents the isotype control. A rightward fluorescence shift is observed in the antibody-stained population.

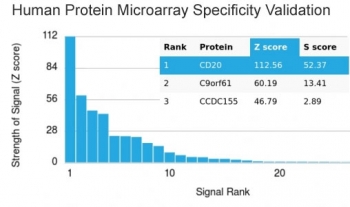

CD20 Antibody rIGEL/773 HuProt Human Protein Microarray Specificity Analysis. MS4A1 Monoclonal Antibody clone rIGEL/773 was evaluated using a HuProt microarray containing more than 19,000 full-length human proteins. The graph displays ranked antibody-binding signals and identifies CD20 among the detected targets. Z-scores represent signal strength relative to the array background, while S-scores describe separation between ranked signals.
CD20 Antibody rIGEL/773 IHC Staining of Human Tonsil Tissue with EDTA Retrieval. Immunohistochemical analysis of FFPE human tonsil tissue using MS4A1 Monoclonal Antibody clone rIGEL/773. Brown DAB staining highlights lymphoid cell populations, with prominent labeling in densely cellular regions. Heat-induced epitope retrieval was performed in 10 mM Tris with 1 mM EDTA (pH 9) for 20 minutes.
CD20 Antibody rIGEL/773 IHC Staining of Human Lymph Node Tissue. Immunohistochemical analysis of FFPE human lymph node tissue using MS4A1 Monoclonal Antibody clone rIGEL/773. Brown DAB staining is observed in numerous lymphoid cells, with heterogeneous distribution throughout the section. Heat-induced epitope retrieval was performed in 10 mM Tris with 1 mM EDTA (pH 9) for 20 minutes.
CD20 Antibody rIGEL/773 WB Analysis of Human Raji Cell Lysate. Western blot analysis of human Raji cell lysate using MS4A1 Monoclonal Antibody clone rIGEL/773. A prominent immunoreactive band is detected near 35-37 kDa, consistent with the expected molecular weight range of CD20.
CD20 Antibody rIGEL/773 WB Detection of CD20 in Human Raji Cells. Western blot analysis of human Raji cell lysate using MS4A1 Monoclonal Antibody clone rIGEL/773. An immunoreactive band is observed near 35 kDa, consistent with the expected electrophoretic migration of CD20.
Species Reactivity Human
Format Purified
Host Mouse
Clonality Recombinant Mouse Monoclonal
Isotype Mouse IgG1, kappa
Clone Name rIGEL/773
Purity Protein G affinity chromatography
UniProt P11836
Localization Predominantly cell surface with some cytoplasmic
Applications Immunofluorescence: 1-3ug/ml
Flow cytometry: 1-2ug/million cells
Immunohistochemistry (FFPE): 1-2ug/ml for 30 min at RT
Western blot: 2-4ug/ml
Limitations This CD20 Antibody rIGEL/773 / MS4A1 Monoclonal Antibody is available for research use only.
Review this product on BioCompare and get a $20 Amazon gift card

Related Products

  • Applications : FACS, IHC-P
    Reactivity : Human
    Recrabbitmono
  • Applications : IHC-P, FACS
    Reactivity : Human
    Recrabbitmono
  • Applications : WB, IHC
    Reactivity : Human
    Recrabbitmono
  • Applications : Functional studies, FACS, IF
    Reactivity : Human
    Citation  Citations(5)
  • Applications : FACS, IF
    Reactivity : Human. Other species not known.
    Citation  Citations(5)
  • Applications : WB, ELISA
    Reactivity : Human
  • Applications : WB, ELISA
    Reactivity : Human
  • Applications : FACS, IF, IHC-P
    Reactivity : Human
  • Applications : Functional studies, FACS, IF
    Reactivity : Human
    Citation  Citations(6)
  • Applications : FACS, IF, IHC-P
    Reactivity : Human
  • Applications : FACS, IF, IHC-P
    Reactivity : Human
  • Applications : FACS, IF, IHC-P
    Reactivity : Human
  • Applications : WB, IHC-P, IF, FACS
    Reactivity : Human
  • Applications : WB, IHC, ELISA (peptide)
    Reactivity : Human
  • Applications : WB, IHC, ELISA (peptide)
    Reactivity : Human
  • Applications : IHC-P
    Reactivity : Human

Description

CD20 Antibody rIGEL/773 / MS4A1 Monoclonal Antibody targets CD20, a membrane-associated phosphoprotein encoded by the MS4A1 gene. CD20 belongs to the membrane-spanning 4A (MS4A) protein family and is expressed predominantly during B-cell development, from late precursor stages through mature B lymphocytes. Expression generally declines during differentiation into antibody-secreting plasma cells. This distribution makes CD20 an important marker for investigating B-cell populations, immune regulation, and lymphoid malignancies.

CD20 is an approximately 33-37 kDa protein containing four membrane-spanning regions, intracellular N- and C-terminal domains, and two extracellular loops. Its larger extracellular loop contains epitopes recognized by several therapeutic monoclonal antibodies. Unlike many cell-surface receptors, CD20 does not possess a conventional extracellular ligand-binding domain or intrinsic enzymatic activity. Instead, its biological functions are associated with membrane organization, calcium signaling, and interactions with other proteins involved in B-cell activation.

Although the precise physiological function of CD20 remains incompletely understood, research has linked the protein to the regulation of intracellular calcium homeostasis and B-cell receptor signaling. CD20 can influence calcium responses following antigen receptor engagement, potentially affecting cellular activation, proliferation, and differentiation. Its organization within the plasma membrane and interactions with neighboring signaling components contribute to the complex regulation of B-cell responses.

CD20 is widely investigated in hematologic malignancies, particularly B-cell non-Hodgkin lymphomas and certain B-cell leukemias. Its relatively restricted expression and accessibility at the cell surface have established it as a major target for therapeutic monoclonal antibodies, including rituximab and other CD20-directed agents. Changes in CD20 abundance, membrane distribution, and epitope accessibility can influence therapeutic antibody recognition and treatment responses. CD20 expression may also change following exposure to targeted therapies or during alterations in B-cell differentiation.

Beyond oncology, CD20 has an important role in research involving autoimmune diseases and B-cell depletion strategies. Studying CD20 expression helps clarify the contributions of B lymphocytes to immune activation, antibody-mediated responses, and inflammatory disease mechanisms. CD20 Antibody rIGEL/773 provides a reagent for investigating this established B-cell marker and its relationship to immune cell identity, lymphoid tissue organization, and disease-associated changes in B-cell populations.

Explore additional immune cell markers in our CD Antibodies collection, featuring antibodies targeting proteins involved in lymphocyte development, immune signaling, and cellular identification.

Application Notes

Titering of the CD20 Antibody rIGEL/773 / MS4A1 Monoclonal Antibody may be required for optimal performance.

1. The prediluted format is supplied in a dropper bottle and is optimized for use in IHC. After epitope retrieval step (if required), drip mAb solution onto the tissue section and incubate at RT for 30 min.

Immunogen

Human CD20 protein was used as the immunogen for this recombinant CD20 antibody.

Storage

Recombinant CD20 antibody with azide can be stored at 2-8oC. The azide-free format should be aliquoted and stored at -20oC or colder.

Alternate Names

B-lymphocyte antigen CD20 antibody, B-cell surface antigen B1 antibody, B1 antigen antibody, Membrane-spanning 4-domains subfamily A member 1 antibody, MS4A1 antibody, B-lymphocyte surface antigen B1 antibody, CD20 antigen antibody, CD20 molecule antibody
