NFS1 Antibody / Cysteine desulfurase (FY13373)

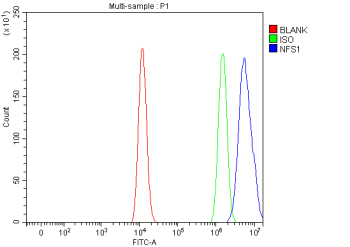

Flow Cytometry analysis of HEL cells using anti-NFS1 antibody. Overlay histogram showing HEL cells stained with (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-NFS1 antibody (1 ug/million cells) for 30 min at 20oC. DyLight 488 conjugated goat anti-rabbit IgG (5-10 ug/million cells) was used as secondary antibody for 30 minutes at 20oC. Isotype control antibody (Green line) was rabbit IgG (1 ug/million cells) used under the same conditions. Unlabelled sample (Red line) was also used as a control.

Western blot analysis of NFS1 using anti-NFS1 antibody. Lane 1: human Caco-2 whole cell lysates, Lane 2: human HEL whole cell lysates, Lane 3: human HepG2 whole cell lysates, Lane 4: human SIHA whole cell lysates, Lane 5: rat RH35 whole cell lysates, Lane 6: rat NRK whole cell lysates, Lane 7: mouse HEPA1-6 whole cell lysates, Lane 8: mouse B16-F10 whole cell lysates. After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-NFS1 antibody at 0.5 ug/ml overnight at 4oC, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal was developed using enhanced chemiluminescent. A band at ~45 kDa is observed in all samples, consistent with the mature, mitochondrial-processed form of NFS1, which runs below its predicted 50 kDa. Some samples show a faint doublet, which has been reported in the literature and may reflect partial presequence processing or post-translational modification.

Immunoprecipitating NFS1 in HepG2 whole cell lysate. Western blot analysis of NFS1 using anti-NFS1 antibody; Lane 1: HepG2 whole cell lysates (30ug); Lane 2: Rabbit control IgG instead of anti-NFS1 antibody in HepG2 whole cell lysate; Lane 3: anti-NFS1 antibody (2ug) + HepG2 whole cell lysate (500ug). After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-NFS1 antibody at a dilution of 0.5 ug/ml and probed with a goat anti-rabbit IgG-HRP secondary antibody. The signal is developed using ECL Plus Western Blotting Substrate. A band at ~45 kDa is observed, consistent with the mature, mitochondrial-processed form of NFS1, which runs below its predicted 50 kDa.
